819-643-5299Commercial Door Operator Models
JHDC
- Type: Jackshaft
- Start/stop progressive
- MyQ technology and WIFI
- Wall Mount Installation
- Battery back-up available
- Power: available in 1/2, 3/4, 1 and 1.5 HP
- With chain hoist
- Single-Phase: 120V and 240V,
Triphase: 208V, 480V, 600V
TDC
- Type: Trolley Drive
- Start/stop progressive
- Ceiling Mount Installation
- Battery back-up available
- Power: available in 1/2, 3/4, 1 and 1.5 HP
- MyQ technology and WIFI
- Single-Phase: 120V and 240V,
Triphase: 208V, 480V, 600V
JDC
- Type: Jackshaft
- Start/stop progressive
- MyQ technology and WIFI
- Wall Mount Installation
- Battery back-up included
- Power: available in 1/2 HP
- Without chain hoist
- Single-Phase: 120V and 240V
Triphase: 208V, 480V, 600V
MH
- Type: Jackshaft
- Medium duty: less 12 cycles / hour
- Power: ½ HP
- With chain hoist
- Single‑Phase: 115V
MT
- Type: Trolley
- Medium duty: less 12 cycles / hour
- Power: ½ HP
- Emergency manual operation using accessible disconnect
- Single‑Phase: 115V
RBH
- Type: Jackshaft
- Industrial duty: more than 12 cycles/hour, max 80/day
- Heavy‑duty roller bearings
- Power: available in ½, ¾, and 1 HP
- With chain hoist
- Place mounted: On wall
- Factory installed brake
- Single-Phase: 115/230V,
3-Phase: 208/230/460V or 575V
RJDC
- Type: Jackshaft
- Brake: Electro-Mechanical braking system
- Power: DC motor
- Fast open at 12" / second
- Single‑Phase: 120V

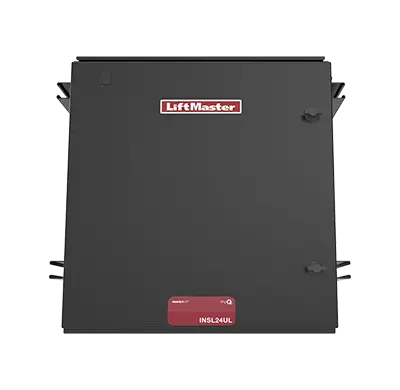

INSL24UL
- Type: Heavy-Duty Industrial Slide Gate Operator
- Power: DC motor
- Battery backup included
- MyQ technology and WIFI
- Single-Phase: 120V and 240V
Triphase: 208/230/460VAC and 575VAC
